PSM被SCANJET收購，在船舶運輸行業的控制和保護系統方面擁有成熟的工程和設計專業知識，船舶儀表和安全系統產品銷往全球，并以其創新性和性能而受到客戶的認可。

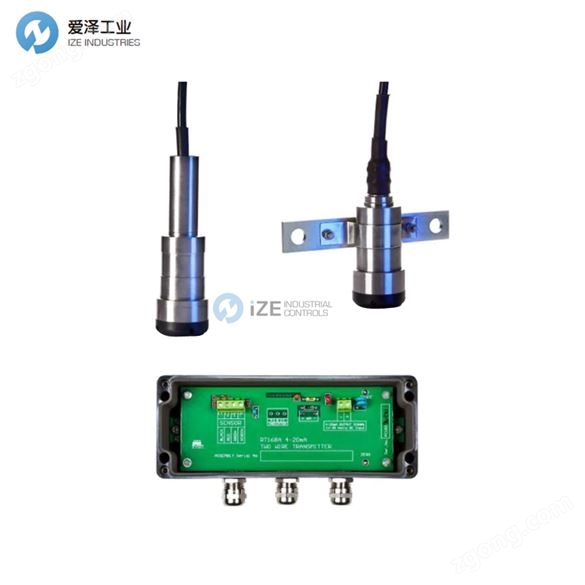

PSM液位變送器260/F6/H4/P5/9/NA技術參數

PSM液位變送器260系列介紹

Tankstar 260 船用液位變送器采用堅固的全焊接結構，可在從軍艦到油輪等惡劣的船載儲罐環境中，提供可靠、準確的基于靜水壓力的液位測量。

遠程放大器上的零點和跨度調節控制允許在無需接觸水箱的情況下進行調節。

Tankstar 260 液位變送器采用壓力敏感膜片，其位移隨液體壓力的變化由 LVDT 精確測量。測量結果經遠程放大器轉換為 4-20mA 信號。該設計兼具出色的響應速度和長期穩定性。液位變送器靈敏度足以精確測量淺罐液位，且能承受至少 5 bar 的過載壓力而不損壞。全焊接的潛水式傳感器采用精選的高級合金制造，這些合金具有優異的穩定性和耐腐蝕性。豐富的接口選擇以及放大器的遠程安裝功能，最大限度地提高了安裝的靈活性和維護便捷性。

260系列液位變送器已通過船用認證，無需維護。出廠時即密封電纜，外層采用高強度交聯聚合物護套，適用于海水、燃料和碳氫化合物的持續浸泡。該電纜允許傳感器在-40°C至+105°C的溫度范圍內安全安裝。

主要特點

? 專為船舶應用而設計和建造

? 提供全系列的過程連接和傳感器安裝選項

? 適用于所有常見的船用液體和貨物應用：海水、燃料和潤滑油、艙底水等。

? 量程寬，測量精度高，長期穩定性好，抗壓力過載能力強。

? 遠程模擬發射器的安裝和配置非常簡單，無需特殊工具或軟件。

? 堅固的結構確保了可靠的運行和低維護成本。

The Tankstar 260’s marine liquid level transmitter rugged all-welded construction provides reliable and accurate hydrostatic pressure-based tank level measurement of liquid levels in the harsh environments of shipboard tanks, from military vessels to tankers.

Zero and Span adjustment controls located on the remote amplifier allow adjustment without the need to access the tank.

The Tankstar 260 transmitter employs a pressure sensitive diaphragm whose displacement in response to the liquid pressure is precisely measured by an L.V.D.T. The resulting output is converted to 4-20mA by the remote amplifier. The design combines excellent responsiveness and long-term stability.  The liquid level transmitter has the sensitivity needed to accurately measure shallow tanks but will withstand a minimum of 5 Bar overload without damage. The all welded and submersible sensor is manufactured from high-grade alloys specifically selected for their stability and corrosion resistance. A wide choice of fittings and the ability to remotely mount the amplifier maximises installation flexibility and serviceability.

The 260 series level transmitter is marine approved and maintenance free. A factory sealed cable is supplied with a heavy-duty outer sheath of cross-linked polymers, suitable for continuous immersion in seawater, fuels and hydrocarbons. This cable permits use of the sensor between temperature limits of -40°C to +105°C for safe area installations

Key Features

? Designed and constructed specifically for marine applications

? Full range of process connections and sensor mounting options available

? Compatible with all common marine liquids and cargo applications: seawater, fuel and lubricating oil, bilge water etc.

? Wide span with high measurement accuracy, long term stability and exceptional pressure overload resistance.

? Simple installation and configuration of the remote analogue transmitter does not require special tools or software

? Robust construction gives reliable operation and low maintenance costs

PSM液位變送器260系列其他常用型號：

PSM 260/F3/H8/P10/9/NA

PSM 260/F6/H4/P5/9/NA

PSM 260/F3/H8/P25/8M/9/NA

PSM 260/F17/H4/P3/1.995MWG/G/9/NA

PSM 260/F6/H2/P5/9/NA

PSM 260/F3/H4/P5/9/NA

PSM Level Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
