SAMSON的業務范圍覆蓋所有需要控制油、氣體、蒸汽或化學物質流動的領域。閥門是該公司核心業務。

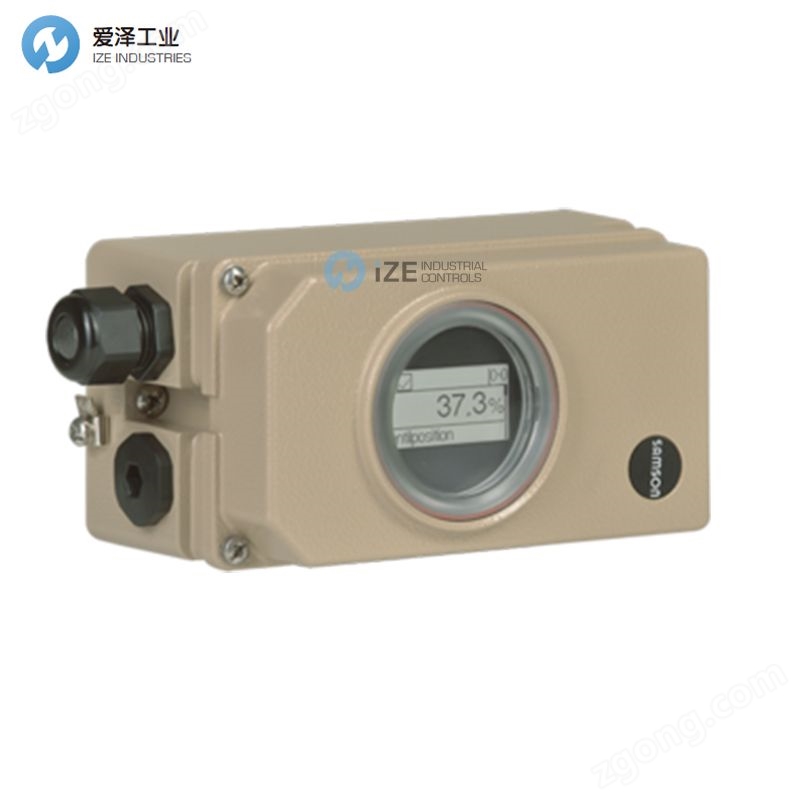

SAMSON定位器3730-3技術參數
SAMSON定位器3730系列介紹
帶HART通信的智能定位器
SAM數字就緒
壓鑄鋁或不銹鋼外殼
根據IEC 60534-6、VDI/VDE 3847或SAMSON整體附件連接到線性執行器
根據VDI/VDE 3845連接到旋轉執行器
連接到帶3710型反向放大器的雙作用執行器
用于控制閥的集成EXPERTplus診斷
非接觸式位置感應
帶有NAMUR Recommendation NE 107狀態和設備消息的純文本顯示
集成診斷功能
簡單的一鍵式菜單驅動操作
由于可選擇的讀取方向，LCD 在任何安裝位置都易于讀取
可使用TROVIS-VIEW軟件通過SSP接口在計算機上進行配置
具有四種不同初始化模式的可變自動啟動
Sub（替代）初始化模式允許定位器在緊急情況下在工廠運行時啟動，而無需改變閥門位置。
所有參數保存在非易失性EEPROM中
具有465 Ω小電氣負載的兩線制系統
可調緊閉功能
連續零位監控集成溫度傳感器和運行時間計數器
自我診斷，消息作為壓縮狀態符合 NAMUR 建議 NE 107
Smart positioner with HART® communication
SAM DIGITAL READY
Die-cast aluminum or stainless steel housing
Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment
Attachment to rotary actuators according to VDI/VDE 3845
Attachment to double-acting actuators with Type 3710 Reversing Amplifier
Integrated EXPERTplus diagnostics for control valves
Non-contact position sensing
Plain-text display with NAMUR Recommendation NE 107 states and messages on the device
Integrated diagnostic functions
Simple one-knob, menu-driven operation
LCD easy to read in any mounting position thanks to selectable reading direction
Configurable with a computer over the SSP interface using the TROVIS-VIEW software
Variable, automatic start-up with four different initialization modes
Sub (substitution) initialization mode allows the positioner to be started up in case of emergency whilst the plant is running without having to change the valve position.
All parameters saved in non-volatile EEPROM
Two-wire system with a small electrical load of 465 ?
Adjustable tight-closing function
Continuous zero monitoring ntegrated temperature sensor and operating hours counter
Self-diagnostics, messages as condensed state conforming to NAMUR Recommendation NE 107
SAMSON定位器3730系列其他常用型號：
SAMSON 3730-3100100040000
SAMSON 3730-3 5702668
SAMSON 3730-1 5679420
SAMSON 3730-20000100400000000.04
SAMSON 3730-3 5671909
SAMSON 3730-30000000400000000.01
SAMSON 3730-31000000400000009.03
SAMSON 3730-31001000400000000.03
SAMSON 3730-310010004000000000
SAMSON 3730-31001000400000000-01
SAMSON 3730-31001000400000009.03
SAMSON 3730-31001000400000009.04
SAMSON 3730-50000000200000000.01
SAMSON 3730-58000000400000010
SAMSON Pneumatic positioner NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON定位器3730-3100100040000的疑問，請隨時與我們溝通。我們將盡全力解決您的問題。
If you have any question for SAMSON products, Please feel free to communicate with us and we will do our best to solve your problem.
SAMSON定位器3730系列3730-3100100040000技術參數及介紹
