ANCORP成立于1965年，作為高真空和超高真空組件的制造商，ANCORP為研究人員，科學家，工程師和制造商提供建造和維護真空系統所需的產品。
ANCORP產品有：高真空隔離閥，球閥、VAT 提升閥，VAT 閘閥和真空硬件等。

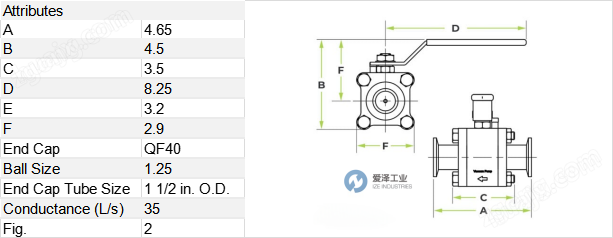

ANCORP球閥D4150-QF40技術參數
ANCORP球閥D4150-QF40產品介紹
ANCORP的球閥由耐腐蝕的316L不銹鋼制成的閥體、閥桿、球體和兩個端蓋組成。氟彈性體用于密封閥桿和端蓋以隔絕大氣，PTFE密封座在關閉時緊緊圍繞球體以隔離工藝。閥門可以手動或通過1/4轉快速實行氣動開啟和關閉。PTFE密封面有助于防止沉積，保持清潔的動態密封以防止因污染導致的故障。
應用
ANCORP真空球閥的耐腐蝕、快速執行的設計使其非常適合用在真空工藝工具中的反應器、陷阱和洗滌器的隔離。
特點
真空等級為1×10^-8托
FKM標準最大溫度范圍為-26°C至150°C（-15°F至302°F）
采用其他o型圈和潤滑脂選項可實現更高的操作溫度。更多信息請聯系銷售部門。
由316L不銹鋼制造
高傳導；直通流
抗顆粒的球/密封設計延長了維護周期
可在不移除系統的情況下維修閥門
維修套件和配件
所有2通球閥系列都提供維修套件。套件包括：
(1) 閥桿o型圈
(2) 閥體o型圈
(2) PTFE密封座
(1) PTFE墊片
(1) PEEK閥桿軸承
ANCORP’s ball valves consist of a body, stem, ball, and two end caps machined from corrosive resistant 316L stainless steel. Fluoroelastomers are used to seal the stem and end caps from atmosphere while the PTFE seats cold flow around the ball to isolate the process when closed. The valve is opened and closed manually or pneumatically by ? turn, quick actuation. The PTFE sealing surface helps to protect it from deposition, maintaining a clean dynamic seal to prevent failure due to contamination.
Applications
The corrosive resistant, fast actuating design of ANCORP’s vacuum ball valves makes them ideal for isolating reactors, traps, and scrubbers on vacuum process tools.
Features
Vacuum rating of 1×10-8 torr
Max Temp w/Standard FKM -26°C to 150°C (-15°F to 302°F)
Higher operating temperatures are possible with alternate o-ring and grease options. Contact our sales department for more information.
Manufactured from 316L stainless steel
High conductance; straight through flow
Particulate resistant ball/seat design lengthens time between maintenance cycles
Service valve without removal from the system
Service Kits and Accessories
Service kits are available for all 2-way ball valve series. Kit includes:
(1) stem o-ring
(2) body o-rings
(2) PTFE seats
(1) PTFE spacer
(1) PEEK stem bearing
ANCORP球閥其他常用型號：
ANCORP B4075-QF16
ANCORP C4100-QF25
ANCORP D4150-QF40
ANCORP E4200-QF50
ANCORP F4200-QF50
