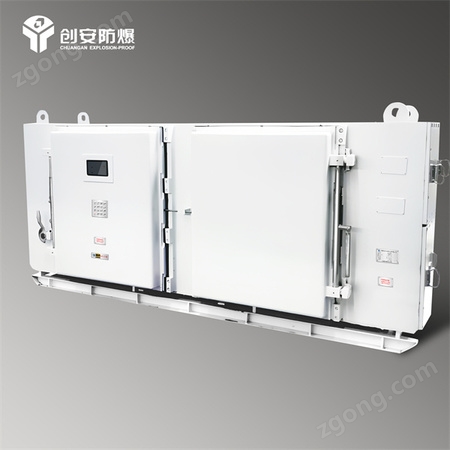

BPJ1-口/口K
礦用隔爆兼本質安全型交流變頻器
用途及使用范圍Application and range of application
BPJ1-□/□K礦用隔爆兼本質安全型交流變頻器為四象限變頻器，與DKB2-□/□礦用隔爆型濾波電抗器、DKB3-□/□礦用隔爆型電抗器配套使用。是一種集全數字式變頻調速技術及相關的散熱技術為一體的產品。該產品適用于交流50Hz、電機功率11KW~800KW、額定電壓660V或1140V的變頻異步電動機重負荷軟起動、軟停車和運行過程控制；其起動、停車、過程控制曲線可設為“S”型曲線、線性曲線、函數曲線等多種曲線形式。該曲線可根據現場實際工況進行調整，從而減少起動時對設備的動張力和起動沖擊。主要用于煤礦井下、其他礦山、石油和化工等惡劣環境中電機的軟起動、軟停車和運行過程控制以及節能應用，用于煤礦井下提升機、無極繩絞車、單軌吊絞車、猴車、帶式輸送機等設備的變頻調速控制。
型號含義Model implication
產品特點 Product features
★起動電流小，對電網沖擊小，起動速度平穩，起動力矩大、運行可靠；
★控制操作簡單，采用模塊化結構，維護方便；
★熱管散熱或水冷散熱，用戶可根據需求就行選配；
★配有RS485、網口等通訊接口，工藝控制調整優化便捷；
★明顯的節能效應，可實現經濟運行；
★可以直接對永磁同步電機進行控制與保護；
★7或10英寸顯示屏顯示，內設“調試導航系統”和“維修導航系統”，使用戶能自行簡單調試和維修工作；并設置元件“壽命報警 系統”，當元件接近使用壽命時，發出報警，防止元件壽命損壞時，影響生產。
主要技術參數 Main technical parameters
產品型號 Product model | 額定電壓 Rated voltage (V) | 額定功率Rated power (KW) | 冷卻方式Cooling mode | 電纜外徑 Outside diameter of cable | 外形尺寸 Boundary dimension (mm) | 重量Weight(kg) | |
主Main cable | 控Control cable | ||||||
BPJ1-800/1140K | 1140 | 800 | 散熱器/水冷 Radiator/water cooling | 42-78 | 8-19 | ||
DKB2-800/1140L | 1140 | 800 | 42-78 | 8-19 | |||
DKB3-800/1140 | 1140 | 800 | 42-78 | ||||
BPJ1-630/1140K | 1140 | 630 | 散熱器/水冷 Radiator/water cooling | 42-78 | 8-19 | ||
DKB2-800/1140L | 1140 | 630 | 42-78 | 8-19 | |||
DKB3-800/1140 | 1140 | 630 | 42-78 | ||||
BPJ1-500/1140K | 1140 | 500 | 散熱器/水冷 Radiator/water cooling | 42-78 | 8-19 | ||
DKB2-800/1140L | 1140 | 500 | 42-78 | 8-19 | |||
DKB3-800/1140 | 1140 | 500 | 42-78 | ||||
BPJ1-400/1140K | 1140 | 400 | 散熱器/水冷 Radiator/water cooling | 39-63 | 8-19 | ||
DKB2-400/1140L | 1140 | 400 | 39-63 | 8-19 | |||
DKB3-400/1140 | 1140 | 400 | 39-63 | ||||
BPJ1-315/1140K | 1140 | 315 | 散熱器/水冷 Radiator/water cooling | 39-63 | 8-19 | ||
DKB2-400/1140L | 1140 | 315 | 39-63 | 8-19 | |||
DKB3-400/1140 | 1140 | 315 | 39-63 | ||||
BPJ1-220/1140K | 1140 | 220 | 散熱器/水冷 Radiator/water cooling | 39-63 | 8-19 | ||
DKB2-400/1140L | 1140 | 220 | 39-63 | 8-19 | |||
DKB3-400/1140 | 1140 | 220 | 39-63 | ||||
BPJ1-400/660K | 660 | 400 | 散熱器/水冷 Radiator/water cooling | 42-78 | 8-19 | ||
DKB2-400/660L | 660 | 400 | 42-78 | 8-19 | |||
DKB3-400/660 | 660 | 400 | 42-78 | ||||
BPJ1-315/660K | 660 | 315 | 散熱器/水冷 Radiator/water cooling | 42-78 | 8-19 | ||
DKB2-400/660L | 660 | 315 | 42-78 | 8-19 | |||
DKB3-400/660 | 660 | 315 | 42-78 | ||||
BPJ1-220/660K | 660 | 220 | 散熱器/水冷 Radiator/water cooling | 39-63 | 8-19 | ||
DKB2-400/660L | 660 | 220 | 39-63 | 8-19 | |||
DKB3-400/660 | 660 | 220 | 39-63 | ||||
BPJ1-132/660K | 660 | 132 | 散熱器/水冷 Radiator/water cooling | 31-51 | 8-19 | ||
DKB2-132/660L | 660 | 132 | 31-51 | 8-19 | |||
BPJ1-90/660K | 660 | 90 | 散熱器/水冷 Radiator/water cooling | 31-51 | 8-19 | ||
DKB2-132/660L | 660 | 90 | 31-51 | 8-19 | |||
BPJ1-250/1140K | 1140 | 250 | 散熱器/風水冷 Radiator/wind ａnd cooling | 39-63 | 8-19 | 1443x1151x1347 | |
BPJ1-160/1140K | 1140 | 160 | 散熱器/風水冷 Radiator/wind ａnd cooling | 39-63 | 8-19 | 1443x1151x1347 | |
BPJ1-110/1140K | 1140 | 110 | 散熱器/風水冷Radiator/wind ａnd cooling | 39-63 | 8-19 | 1343x1121x1247 | |
BPJ1-75/1140K | 1140 | 75 | 散熱器/風水冷Radiator/wind ａnd cooling | 39-63 | 8-19 | ||
BPJ1-250/660K | 660 | 250 | 散熱器/風水冷Radiator/wind ａnd cooling | 39-63 | 8-19 | 1443x1151x1347 | |
BPJ1-160/660K | 660 | 160 | 散熱器/風水冷 Radiator/wind ａnd cooling | 39-63 | 8-19 | ||
BPJ1-110/660K | 660 | 110 | 散熱器/風水冷 Radiator/wind ａnd cooling | 39-63 | 8-19 | 1343x1121x1247 | |
BPJ1-75/660K | 660 | 75 | 散熱器/風水冷 Radiator/wind ａnd cooling | 39-63 | 8-19 | ||
